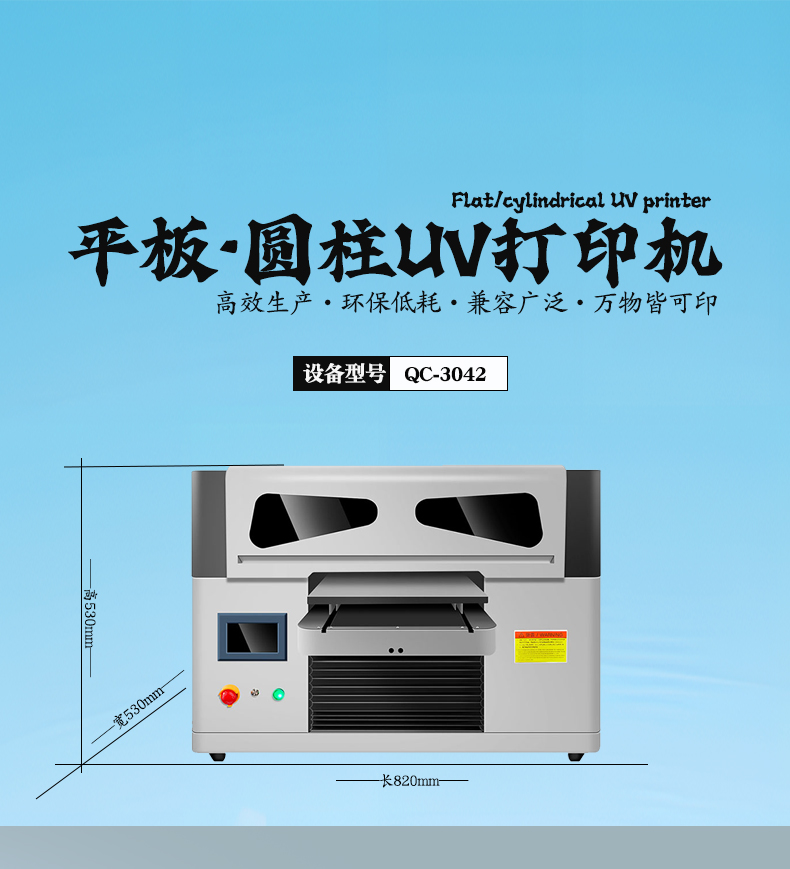

3045 Flatbed & Cylindrical UV Printer

share

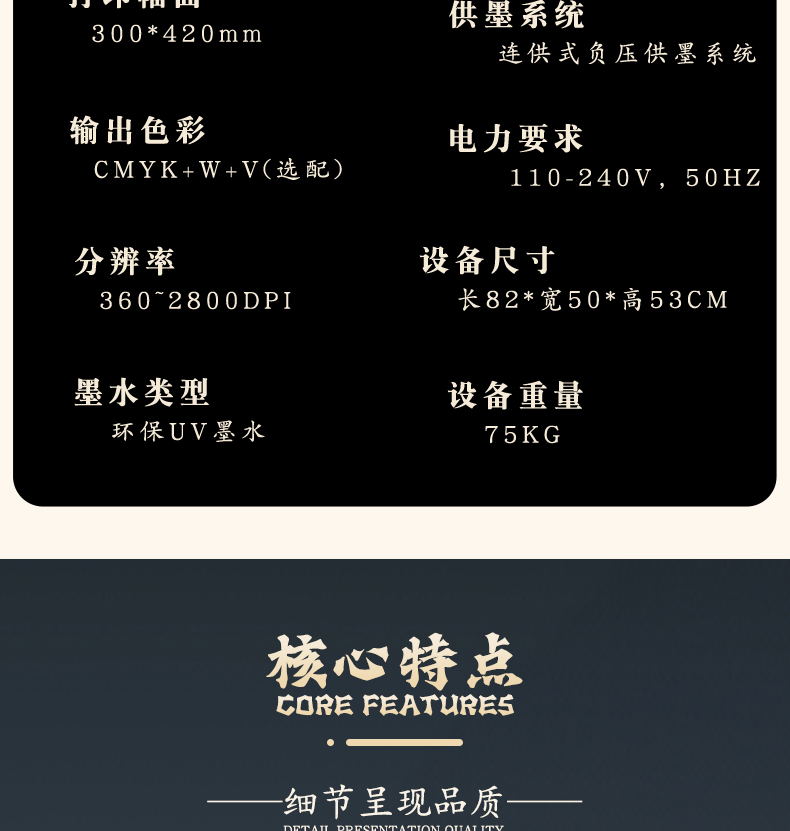

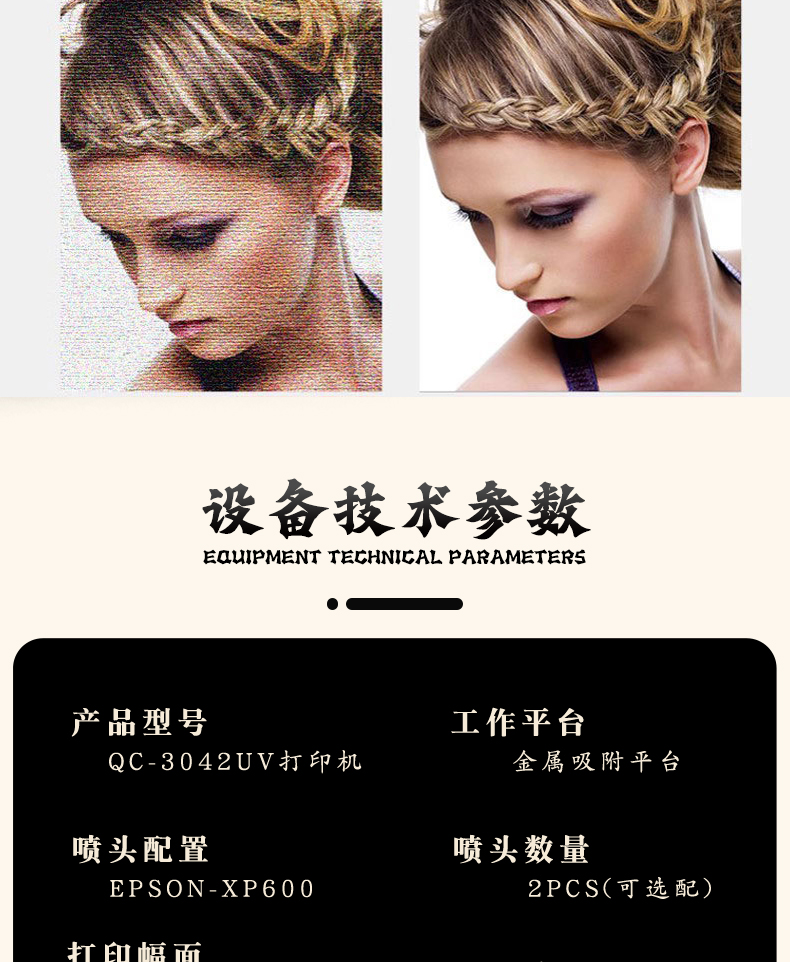

Parameter	Specification
Model	QC-3045

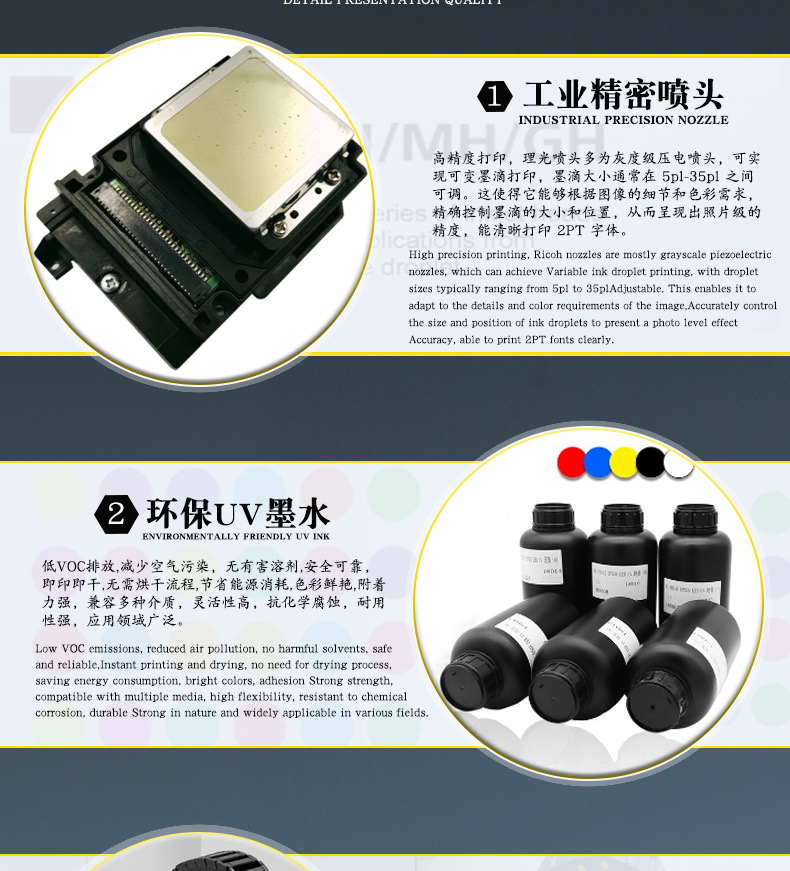

Print Head	Epson XP600/I3200/I1600 Industrial Print Head (Vision Positioning Optional)
Print Size	Width 300mm × Length 450mm
Print Thickness	150mm

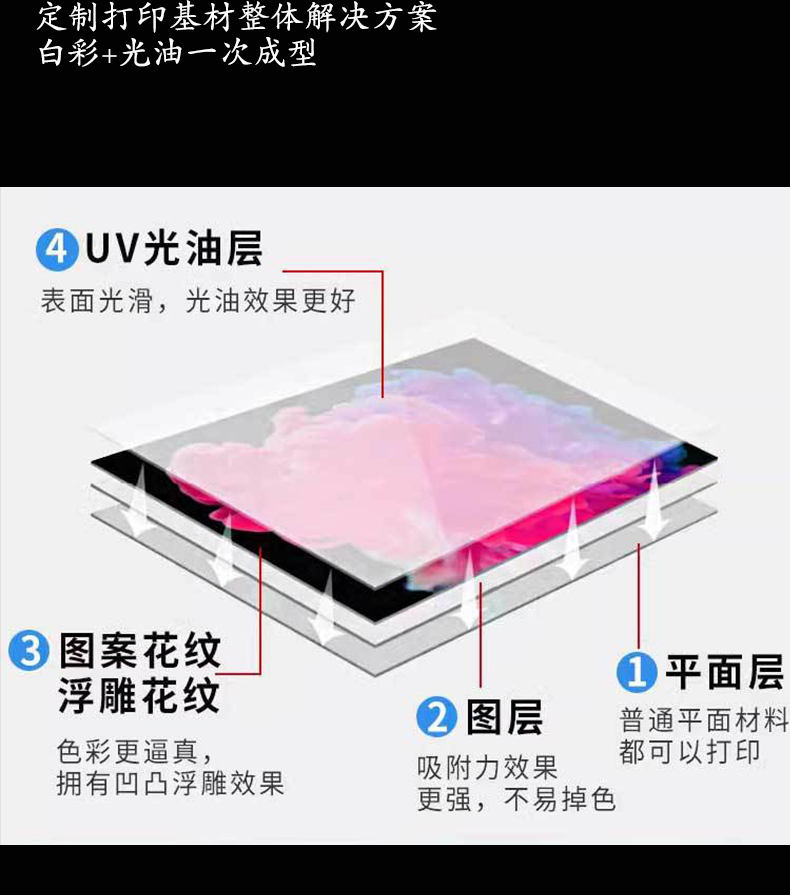

Additional Functions	Color Printing, Embossment Printing, Varnish Printing, Plate-free Bronzing
Print Mode	Unidirectional/Bidirectional, 4PASS/6PASS/8PASS
Print Resolution	720720DPI / 7201400DPI
Print Head Protection	Print Head Anti-collision System
Lifting Function	Ink Cartridge Lifting: Electronic Automatic/Manual Intelligent Sensor Adjustment
Software	Ruiyin RIP/PP/PF; Supports Multiple Printing Software
Supported Image Formats	TIFF(RGB/CMYK), BMP, PDF, EPS, JPEG
Ink Colors	CMYK + W+V (Supports Multiple Color Combinations)
Color Difference Management	Built-in ICC Color Management Curve
	Intelligent Ink Constant Temperature System
Anti-clogging Function	Timed Ink Stirring System, Automatic Cleaning & Flushing Function
	US Pure Medical-grade Permeation Filter Device
Power Consumption	0.3kWh/Hour
Rated Voltage	AC220V 50HZ
Power Requirements	AC220V(±10%); 50Hz; P:300W (Main Unit)
Operating Environment	Temperature: 20°C~32°C / Humidity: 40~70%
Ink Supply System	siphon ink supply system

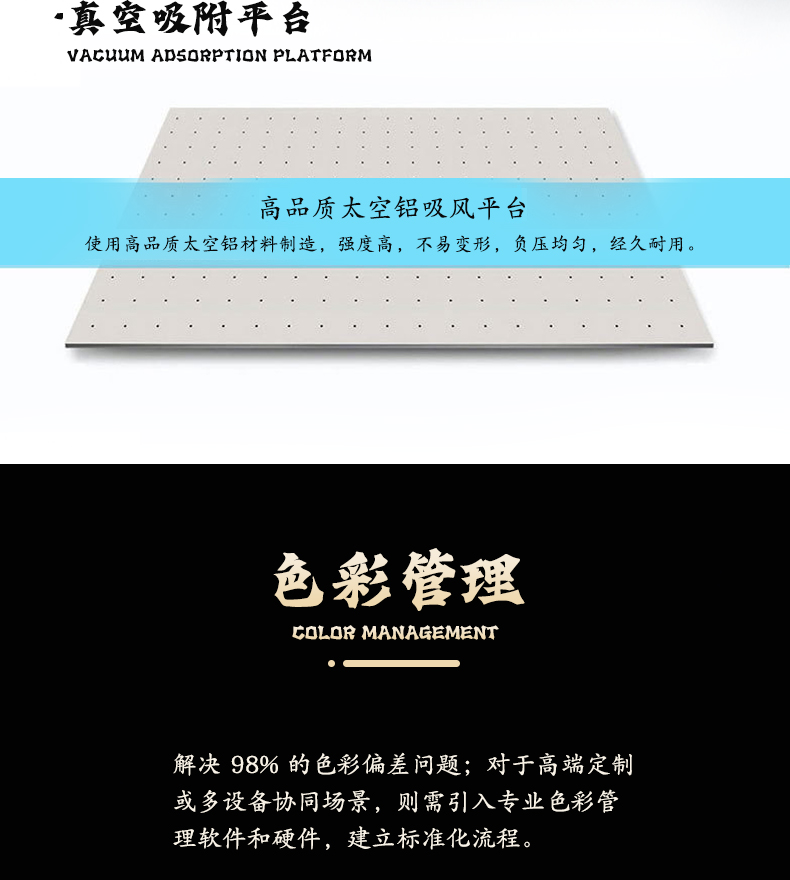

Safety Protection	Platform Vacuum Suction Function
	Print Head Anti-collision Function
Environmental Standards	No VOC Emissions, Ink Certified by SGS & MDS
Equipment Structure	Frame: Full Steel Structure with Quenching & Precision Milling
	Beam: Injection-molded Beam
Net Weight	75KG
Equipment Dimensions	830mm820mm570mm (LengthWidthHeight)
