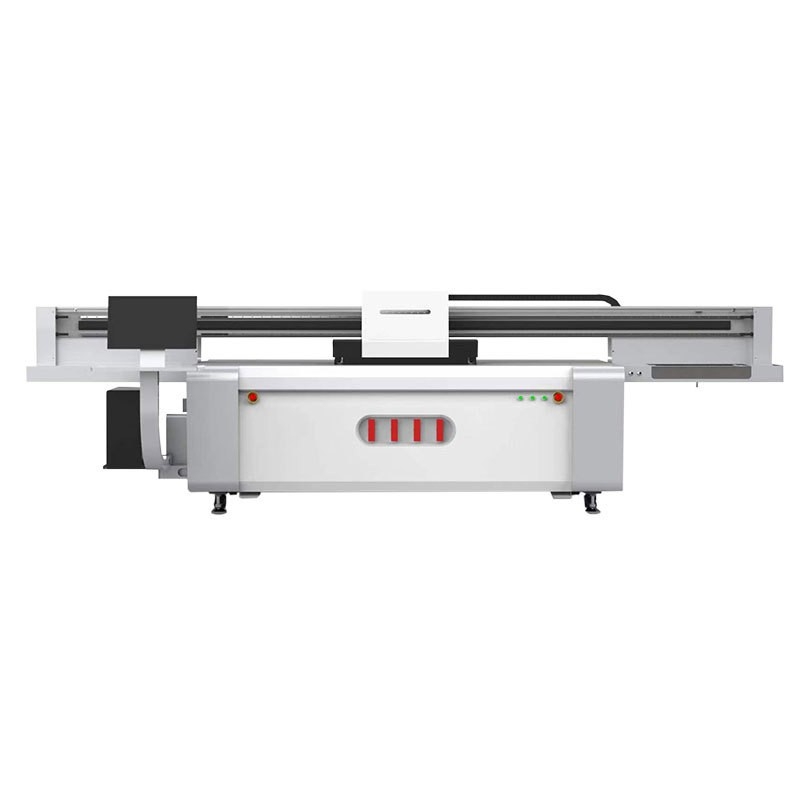

2513 Flatbed UV Printer
| Parameter | Specification |
| Model | SASE-2513 |
| Print Head Model | Ricoh Series/Epson I3200/I1600 Industrial Print Head (Vision Positioning Optional) |
| Print Size | Width 2500mm × Length 1300mm |
| Print Thickness | 200mm |
| Jet Height | 0-30mm for Special Uneven Materials (Jet height varies with different print heads) |
| Additional Functions | Color Printing, Embossment Printing, Varnish Printing, Plate-free Bronzing |
| Print Mode | Unidirectional/Bidirectional, 4PASS/6PASS/8PASS |
| Print Resolution | 720*720DPI / 720*1400DPI |
| Print Head Protection | Print Head Anti-collision System |
| Lifting Function | Ink Cartridge Lifting: Electronic Automatic/Manual Intelligent Sensor Adjustment |
| Software | Ruiyin RIP/PP/PF; Supports Multiple Printing Software |
| Supported Image Formats | TIFF(RGB/CMYK), BMP, PDF, EPS, JPEG |
| Ink Colors | CMYK + W+V (Supports Multiple Color Combinations) |
| Color Difference Management | Built-in ICC Color Management Curve |
| Intelligent Ink Constant Temperature System | |
| Anti-clogging Function | Timed Ink Stirring System, Automatic Cleaning & Flushing Function |
| US Pure Medical-grade Permeation Filter Device | |
| Power Consumption | 1-1.5 kWh/Hour |
| Rated Voltage | AC220V 50HZ |
| Power Requirements | AC220V(±10%); 50Hz; P:4500W (Main Unit) |
| Operating Environment | Temperature: 20°C~32°C / Humidity: 40~70% |
| Ink Supply System | Industrial-grade Negative Pressure Ink Supply System |
| Safety Protection | Platform Vacuum Suction Function |
| Print Head Anti-collision Function | |
| Environmental Standards | No VOC Emissions, Ink Certified by SGS & MDS |
| Equipment Structure | Frame: Full Steel Structure with Quenching & Precision Milling |
| Beam: Injection-molded Beam | |
| Transmission Configuration | X-axis: Servo Motor + Dual THK Silent Guide Rails |
| Y-axis: Precision Servo + Dual Screw Drive + Dual Linear Guide Rails | |
| Z-axis: Precision Stepper + Trapezoidal Screw | |
| Net Weight | 1200KG |
| Equipment Dimensions | 4550mm*2050mm*1350mm (Length*Width*Height) |
